The MSD460 is a professional Material Analysis Polarizing Microscope designed for laboratory research, crystal observation, and industrial material inspection. Its transmitted and reflected light system provides flexible polarized imaging for different sample types and observation requirements.
With a magnification range of 50X–600X, the microscope delivers clear and accurate imaging for mineral analysis, metallurgical inspection, and material science applications. The trinocular viewing system supports comfortable observation and improves efficiency in laboratory environments.
Designed with stable optical components and reliable illumination, the Material Analysis Polarizing Microscope is suitable for universities, research laboratories, and industrial analysis applications requiring detailed polarized light observation.
| Attribute | Value | Attribute | Value |
|---|---|---|---|
| type | Trinocular Microscope | illumination | LED |
| Focus Type | Manual Focus | Dioptric Adjustment | ±5d |
| camera resolution | Other | External Display Support | Yes |
| IP Rating | IP54 | warranty | 1 Year |
| customized support | OEM, ODM | place of origin | Guangdong, China |
| model number | MSD460 | brand name | Murzider |
| Service | OEM,ODM | Brand | Murzider |
| Model | MSD460 | Total magnification | 50X to 500X(standard configuration) |
| Optical system | Infinity | Trinocular | Hinge type, viewing Angle 30 degrees |

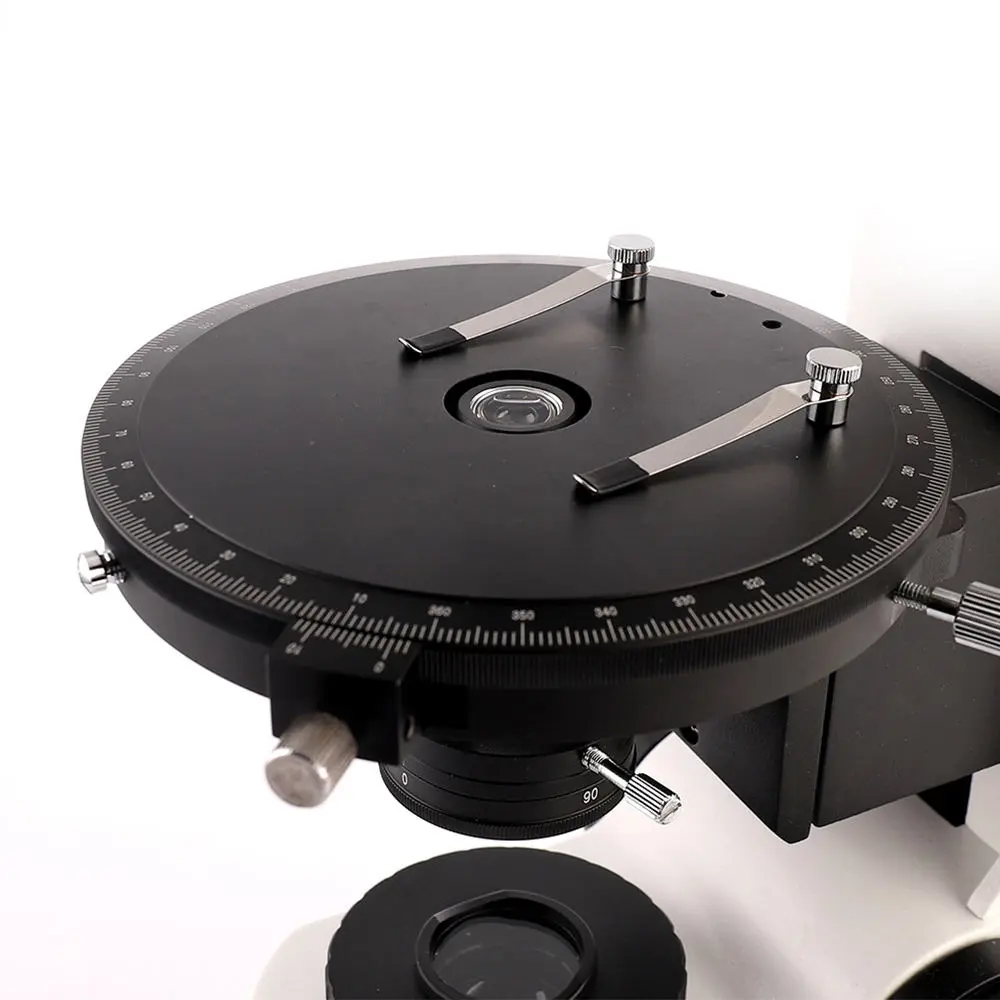

| Stage | 150mm rotating stage | Interpupillary distance | 53 to 75mm |
| Host Power supply | Ac voltage 85V to 265V 50/60Hz, fuse tube specification: 250V 3.0A | Warranty period | 1 year |
| Attribute | Value | Attribute | Value |
|---|---|---|---|
| Selling Units | Single item | Single package size | 33X40X70 cm |
| Single gross weight | 17.000 kg |
