MSD105 is a LCD Microscope designed as a trinocular biological system for laboratory cell observation, educational research, and clinical diagnosis. It combines optical microscopy with digital display technology, enabling real-time viewing of biological samples with clear and stable imaging performance.

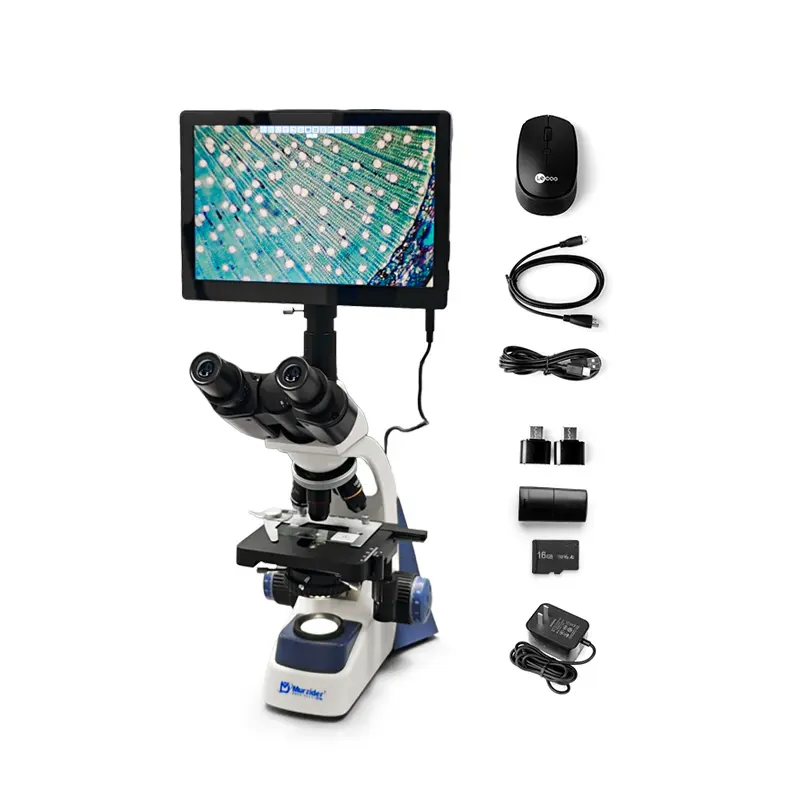

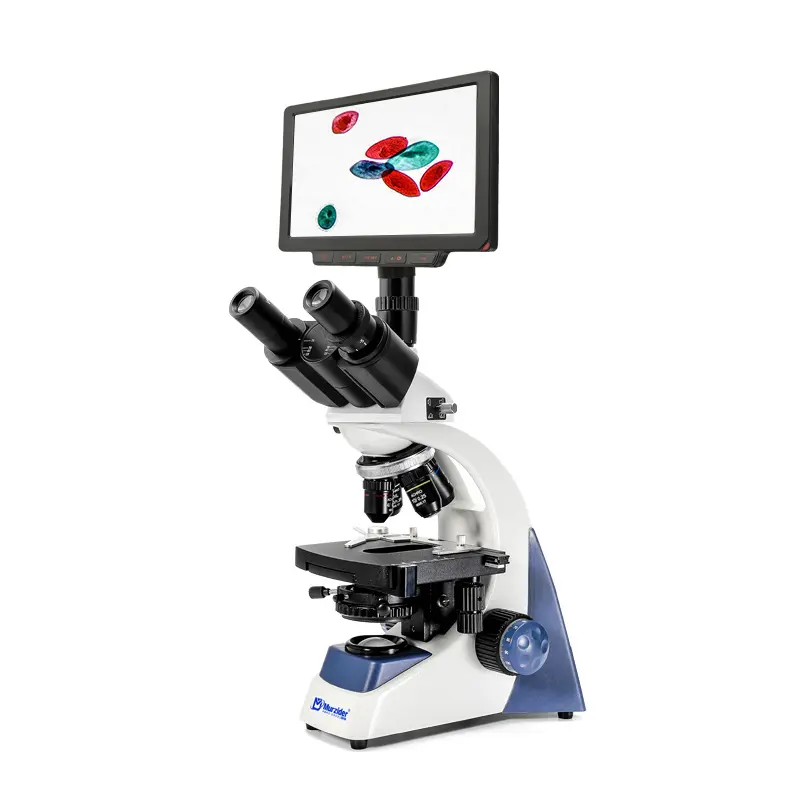

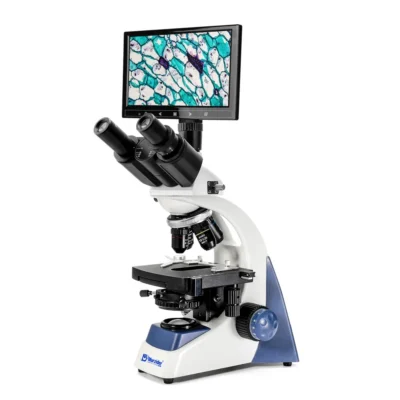

This LCD Microscope supports multiple optional display configurations, including 7-inch, 9-inch, 10.1-inch integrated screens, and a 4K imaging system. It is widely used in laboratories, universities, and clinical environments where high-quality biological observation and digital recording are required.
| Item | Specification | Item | Specification |
|---|---|---|---|
| Type | Biological Microscope | Eyepiece | WF10X |
| Illumination | LED Display Screen | Objective | 4X/10X/40X/100X |
| Focus Type | Manual Focus | Eyepiece Tube | Trinocular |
| Dioptric Adjustment | ±5d | Head | 30°tilt |
| Camera Resolution | Other | Diopter | ±5 |
| Display Type | Led Display | Pupil Distance | 55-75mm |
| External Display Support | Yes | Nosepiece | Four hole |
| IP Rating | IP54 | Stage | 125*115mm |
| Warranty | 1 Year | Focusing Mechanism | Locking and limiting device |
| Customized Support | ODM, OEM | Condenser | Abbe Condenser N.A.1.25 |
| Place of Origin | Guangdong, China | Model Number | MSD105 |
| Brand Name | Murzider | – | – |
