The Murzider MSD280 Material Failure Analysis Microscope is designed for industrial material observation, defect inspection and metallurgical analysis applications. Featuring an infinity optical system and integrated 11.6 inch display, the microscope provides clear real-time imaging for industrial quality control and failure analysis workflows.
With 50X-800X magnification capability, the microscope supports detailed material observation and precision analysis in laboratories and manufacturing environments. The Material Failure Analysis Microscope is ideal for industrial testing and material research applications.
| Item | Specification | Item | Specification |
|---|---|---|---|
| Type | Trinocular Microscope | Illumination | LED |
| Focus Type | Manual Focus | Dioptric Adjustment | ±5d |
| Camera Resolution | Other | External Display Support | Yes |
| IP Rating | IP54 | Warranty | 1 Year |
| Customized Support | OEM, ODM | Place of Origin | Guangdong, China |
| Model Number | MSD-S280-11.6YT | Brand Name | Murzider |
| Optical Systems | Infinity optical system | Eyepiece | WF10X (Wide field of view) |
| Converter | Five holes (inward-type ball inward-positioning) | Diopter | ±5 |

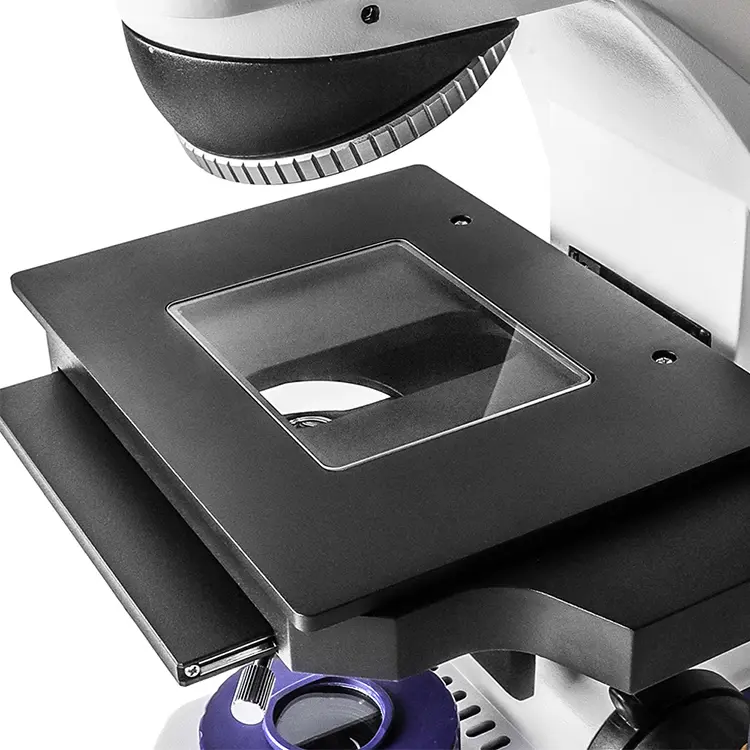

| Condenser | Abbe condenser N.A.1.25 | Stage | 210mm×140mm, movement: 75mm×50mm |
| Service | OEM, ODM | Warranty period | 1 year |
