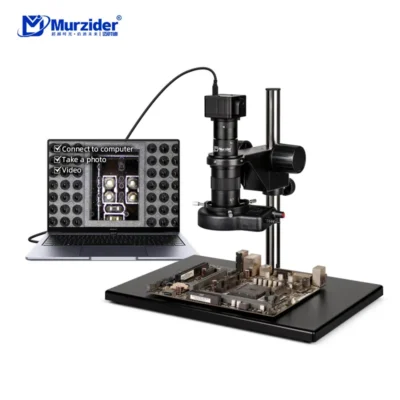

The Murzider MSD417 Industrial Workpiece Inspection Microscope is designed for factory inspection, industrial observation and precision analysis applications. Featuring stable high-definition imaging and flexible camera configurations, the system provides clear real-time observation for manufacturing quality control and workpiece inspection tasks.

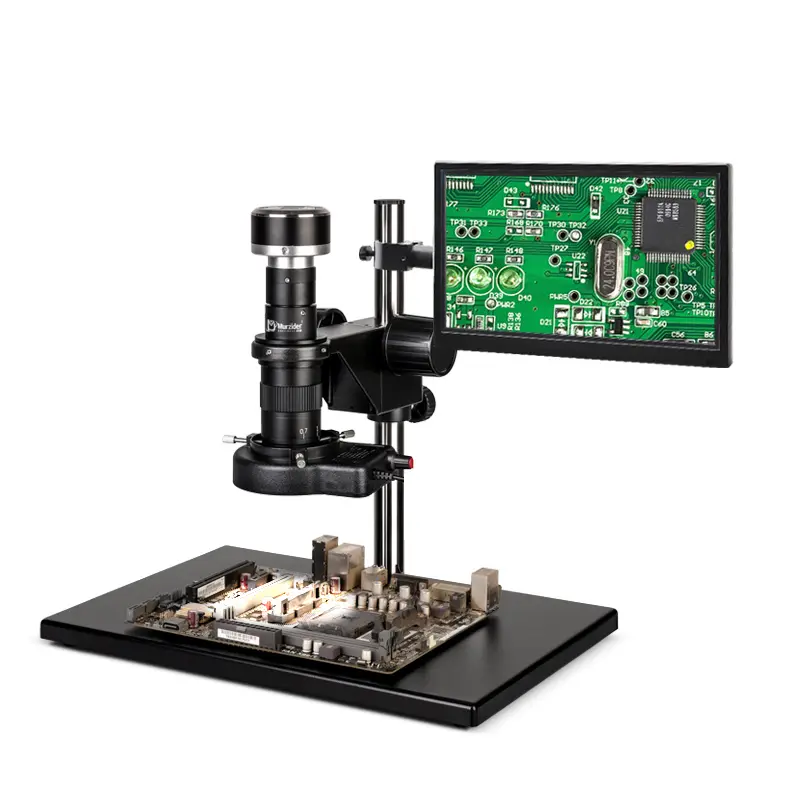

With optional configurations including round cameras, 11.6 inch horizontal displays, 5MP cameras and 10MP cameras, the microscope adapts to different industrial inspection environments. The Industrial Workpiece Inspection Microscope is suitable for production lines, electronic inspection and industrial testing workflows.
| Key Attributes | Details | Key Attributes | Details |
|---|---|---|---|
| Type | Digital Microscope | Illumination | LED |
| Focus Type | Manual Focus | Dioptric Adjustment | ±5d |
| Camera Resolution | Other | External Display Support | Yes |
| IP Rating | IP54 | Warranty | 1 Year |
| Customized Support | OEM, ODM | Place of Origin | Guangdong, China |
| Model Number | MSD417-C1228 | Brand Name | Murzider |
| Service | OEM,ODM | Brand | Murzider |
| Model | MSD417-C1228 | Diploid Magnification | 0.7 – 4.5 X |
| CCD Interface | 0.35X-2.25X field of view :13.710.3-2.11.6mm | Support Maximum Target Surface | 1/2″ |

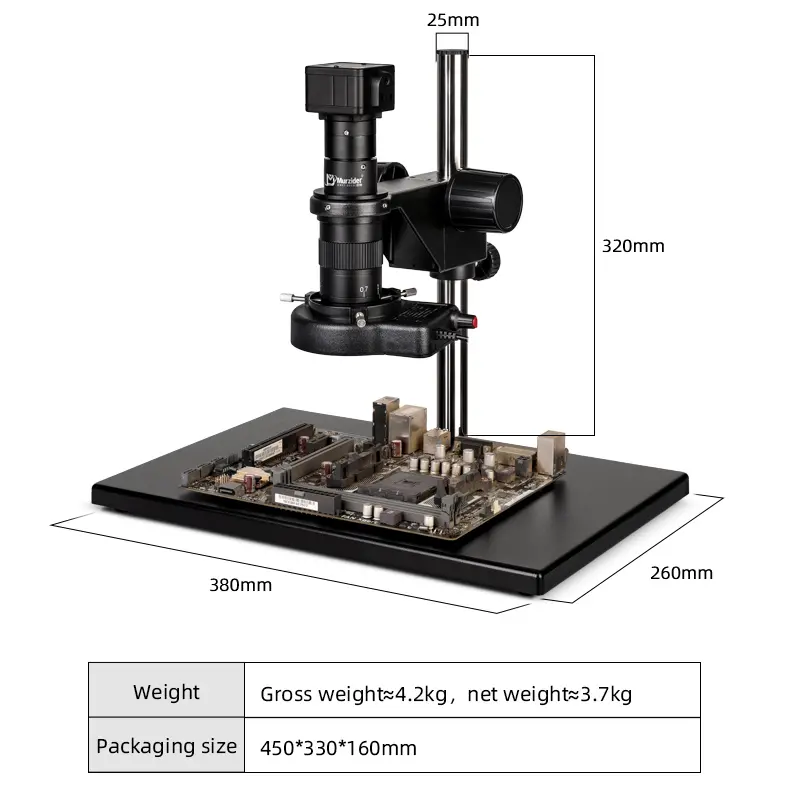

| Working Distance | 80 mm | Post Height | 320mm |
| Base Plate Size | 380*260mm | Warranty Period | 1 year |
